mRNA comprehensive is an extensive workflow to identify expressed genes from your samples, possible gene fusions and transcriptome variants from your RNA-seq data. Downstream analysis such as GO and KEGG-pathway analysis can be performed on the set of interesting genes. In this workflow, parameters can also be optimized depending on datasets and analysis needs. State-of-the-art publication-quality visualization and reports of your analysis results can be easily downloaded in the form of tables, images and html.

Try it in Genome Explorer®

Pipeline

Import Sample (FASTQ | SRA) Cleaned (FASTQ) QC Reports Map to Reference (BAM) QC Reports BAM Processing (Cleaned BAM) QC Reports Estimate Transcript GTF Compare Transcript GTF Merge Transcript GTF Differential Expression Project Reports Detect Gene Fusion Reports Indel Realignment(Clean Disease/Normal BAM) Base Recalibration(Clean Disease/Normal BAM) GATK Call Variants- mRNA (VCF) Annotate Variants Annotated (VCF) ClinChek+ Project Reports PanChek+

Import Samples

Samples are downloaded from amazon s3 bucket.

Pre-Alignment QC

Pre-alignment quality control step is performed to ensure the quality of raw data and it also provides a QC report which can spot biases in the starting library material or during sequencing. We use the FASTQC program which compiles important statistics on NGS data, such as per-base and per-sequence quality scores, GC content and checks for duplicated and overrepresented sequences within the file.

Alignment

In this step sequencing reads are aligned to the reference genome. The mapping is performed using an ultrafast, memory-efficient read aligner Tophat which is based on Burrows-Wheeler Transformation algorithm. Read alignment information is reported in SAM/BAM format which is used for calculating depth of coverage and calling variants.

Alignment QC

Alignment QC step examines the sequencing alignment data in SAM/BAM file according to the features of the mapped reads and their genomic properties and provides an overall view of the data that helps to detect biases in the sequencing and/or mapping of the data which you should be aware of before doing any further analysis. All statistics about sufficient coverage, depth of sequencing and read counts are provided at this step.

Estimate transcript

The objective is to assemble reads that were previously aligned to the reference genome into transcript structure (transcript assembly process) and to estimate the abundance levels of genes and transcripts. The expression levels are reported in terms of Fragments Per Kilobase of Exon per Million mapped fragments (FPKM) units.

Detect gene fusion

The objective is to find somatic novel and known fusion genes, translocations and chimeras in RNA-seq data using state-of-the-art fusion-finder algorithms which adds important information for risk stratification and serves as specific targets for treatment, resulting in dramatically improved clinial decisions.

GATK processing

GATK processing step includes data cleanup operations to correct for technical biases and make the data suitable for analysis. This step involves indel cleaning and base score recalibration following the GATK's latest definition of best practices.

Call variants

Calling variants using GATK follows the GATK Best Practices to identify and predict the effect of high quality transcriptome variants from your RNA-seq data. Likelihood data for each genotype is calculated and variants are identified with respect to the reference genome. The results are reported in the widely popular VCF format.

Annotate variants

Functional annotation of the high quality variants is performed to predict the effects of variants on genes (such as amino acid changes, etc.) and also it classifies the mutation in various categories like synonoumous or non-synonomous, mis-sense or silent. Novel SNVs are identified by filtering variants that are already annotated in existing publicly available databases like dbSNP. Deleterious variants are separated from the benign ones by assessing the mutagenic potential using SIFT and/or PolyPhen scoring system.

Clinchek+

After identification and annotation of high quality single nucleotide variants and small insertions and deletions (indels), these variants are prioritized on the basis of loss of function and actionable mutations. Detailed reports for Novel and Rare loss of function mutations are provided with the added information from databases like omim,clinvar,polyphen and SIFT for clinical significance

Supported Organisms

1

Homo sapiens

2

Mus musculus

Reports

Turn your complex genomic data into a meaningful report of actionable information and insightful visualizations.
Reports are highly customizable and exportable in industry-class formats.

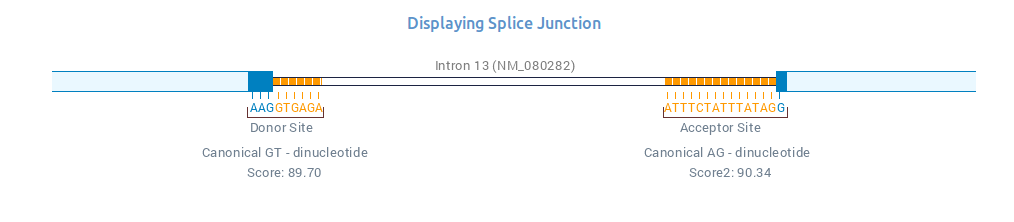

Splice Junction

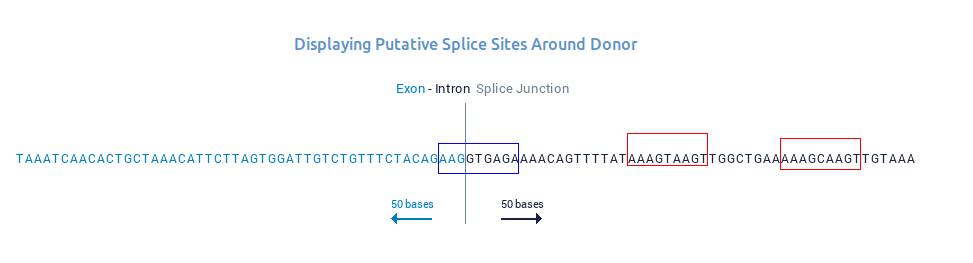

Displaying Putative Splice Sites Around Donor

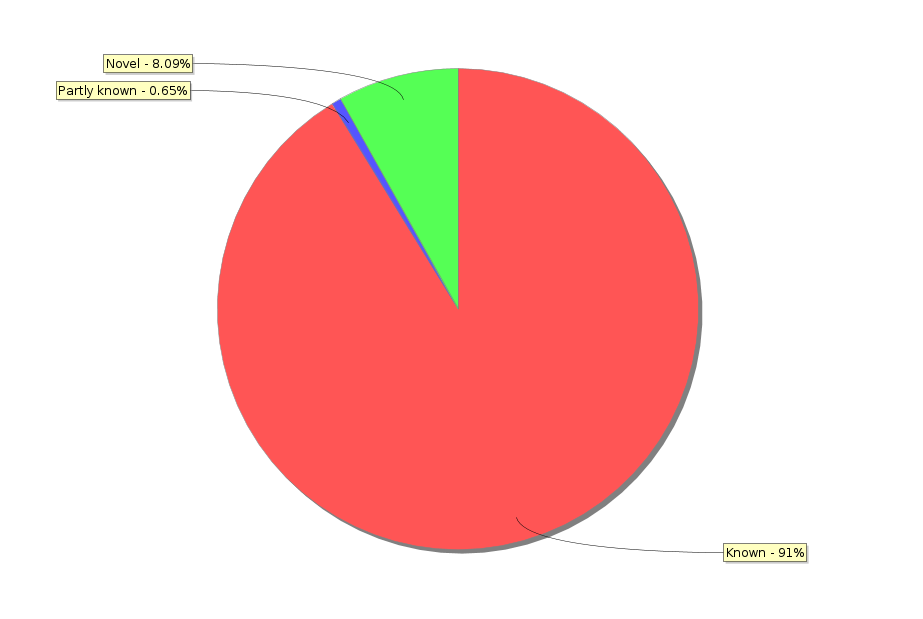

Junction Analysis

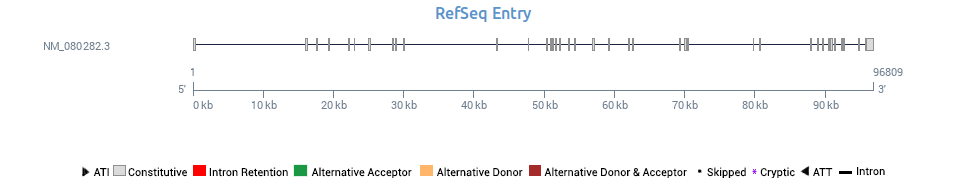

Displaying AT-AS Events

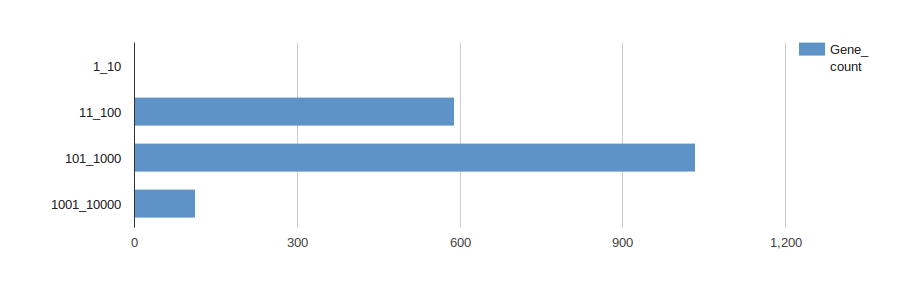

FPKM Distribution

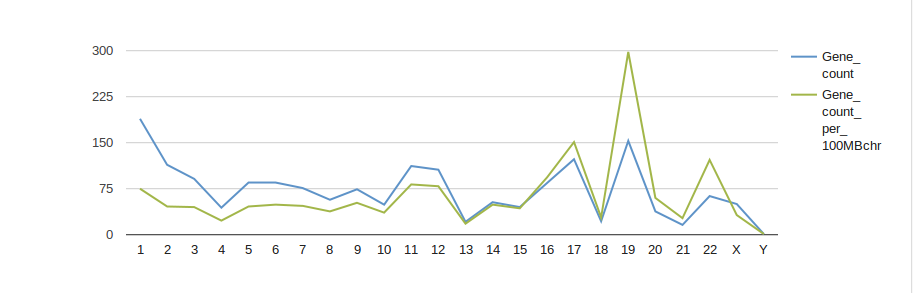

Gene density plot

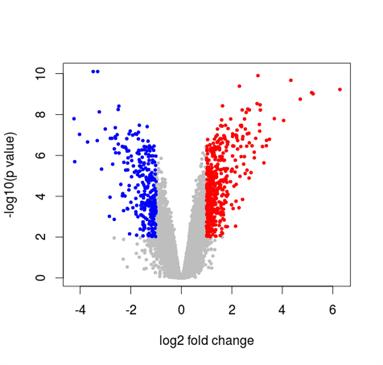

volcano plot

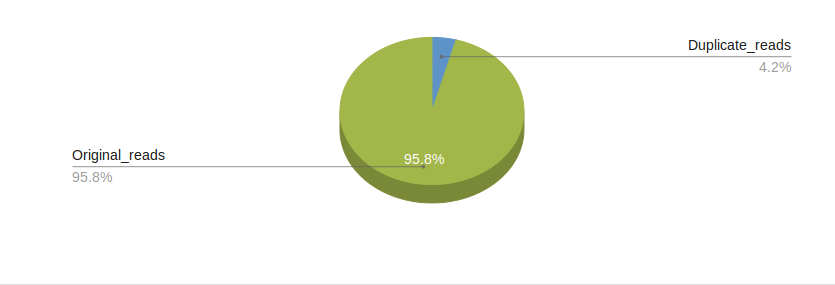

Read Duplication Summary

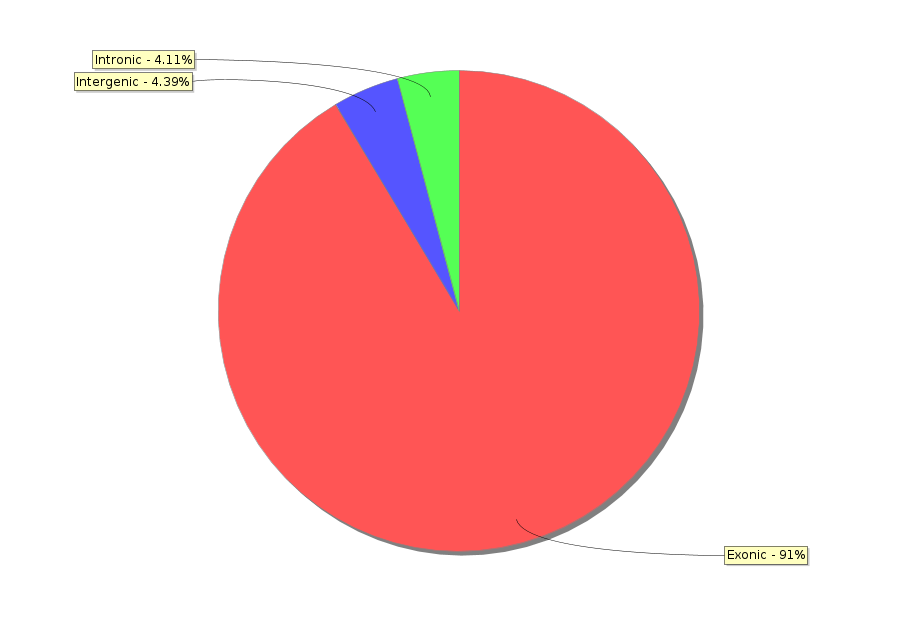

Reads Genomic Origin

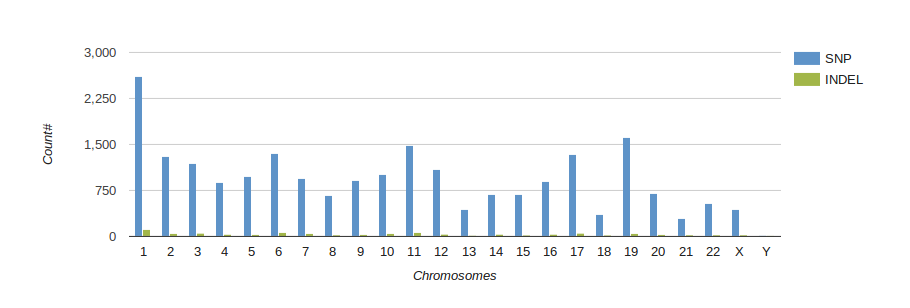

Genomic distribution of SNPs & INDELs

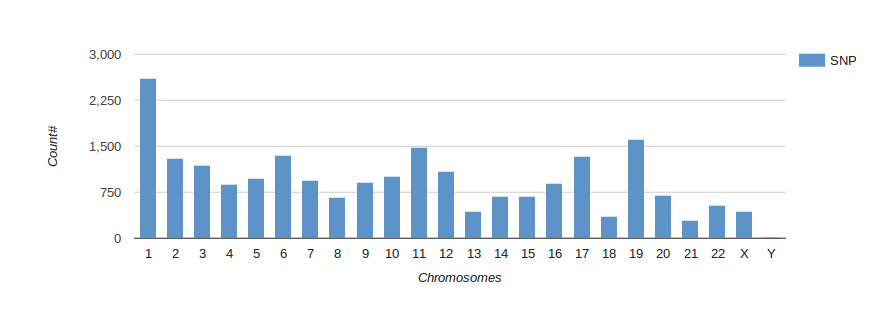

Genomic distribution of SNPs

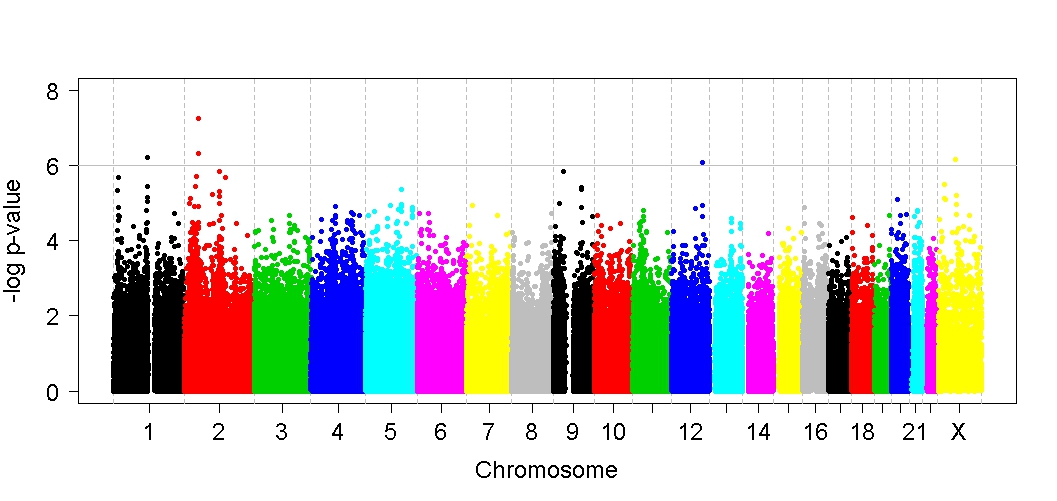

Manhattan Plot

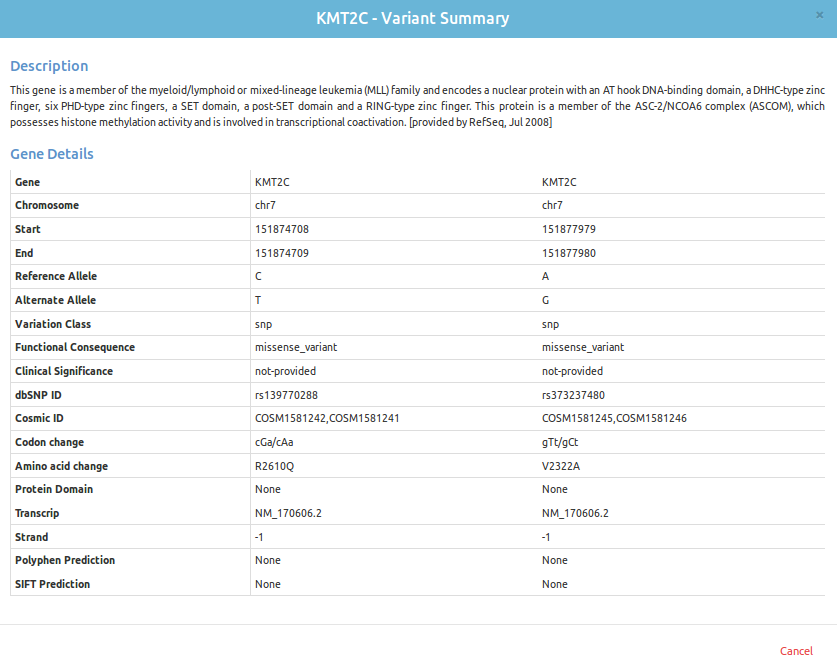

variant summary

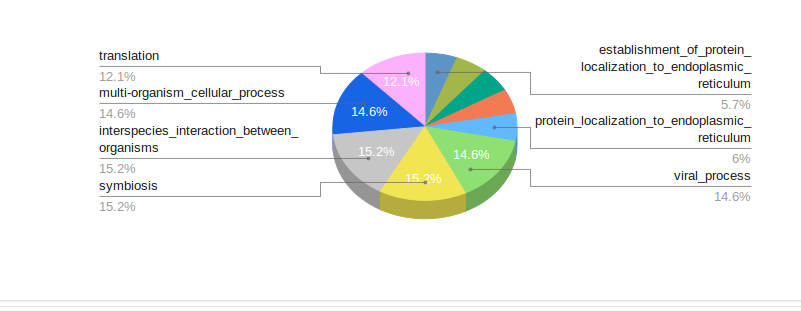

GO Biological Process

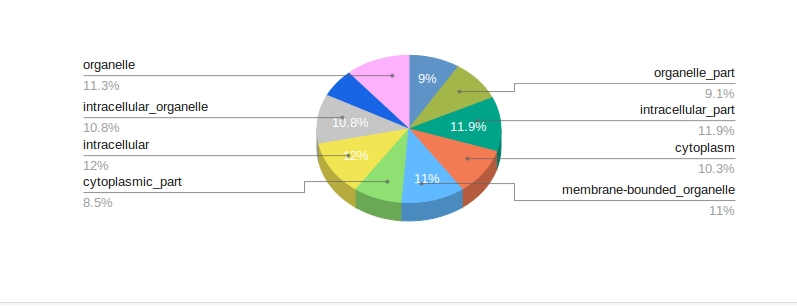

GO Cellular Component

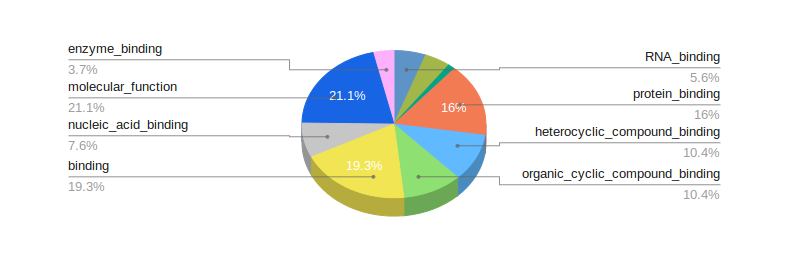

GO Molecular Function

KEGG Pathway

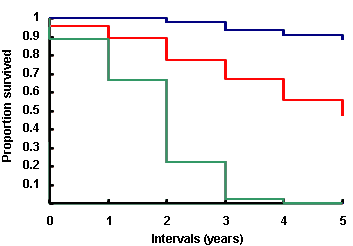

Survival

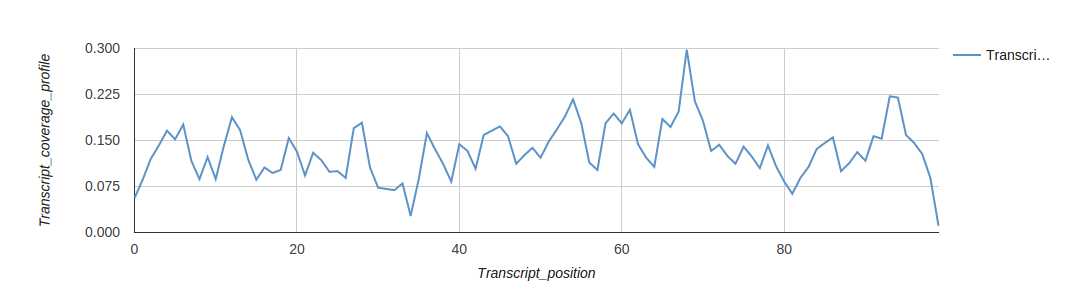

Pre-filter Coverage Profile (Low)
